Adapter sleeve H305 H306 H308

Short Description:

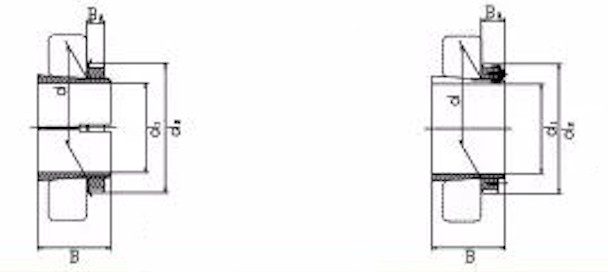

H305:d:25mm B:29mm B₂:8mm

H306:d:30mm B:31mm B₂:8mm

H307:d:35mm B:35mm B₂:9mm

Product Detail

Product Tags

The adapter sleeve is composed of a set bushing, a lock nut, a lock washer (or lock card) and other parts. Adapter sleeves with lock nuts and lock washers can only be interchangeable as a single set. Spare parts from different sources are not interchangeable. Difference from Withdrawal Sleeve Broadcast Edit Adapter sleeve tightens round nut to hold up the bearing, while withdrawal sleeve is the opposite. The specific method of this is to open the thread in different places: the adapter sleeve is in the thin place, and the withdrawal sleeve is in the thick place.

Designations	Boundary Dimensions					Appropriate Bearing(s)				W.t
Designations	d	d₁	B	d₂	B₂	Aligning Ball Bearings		Spherical Roller Bearing		KG
H305	25	20	29	38	8	1306K	2205K	21306K	__	0.071
H306	30	25	31	45	8	1306K	2206K	21305K	__
H307	35	30	35	52	9	1307K	2207K	21307K	__	0.14
H308	40	35	36	58	10	1308K	2208K	21308K	22208K	0.17
H309	45	40	39	65	11	1309K	2209K	21309K	2209K	0.23
H310	50	45	42	70	12	1310K	2210K	21310K	22210K	0.27
H311	55	50	45	75	12	1311K	2211K	21311K	22211K	0.32
H312	60	55	47	80	13	1312K	2212K	21312K	22212K	0.36
H313	65	60	50	85	14	1313K	2213K	21313K	22213K	0.42
H314	70	60	52	92	14	1314K	2214K	21314K	22214K	0.67
H315	75	65	55	98	15	1315K	2215K	21315K	22215K	0.78
H316	80	70	59	105	17	1316K	2216K	21316K	22216K	0.95
H317	85	75	63	110	18	1317K	2217K	21317K	22217K	1.10
H318	90	80	65	120	18	1318K	2218K	21318K	22218K	1.30
H319	95	85	68	125	19	1319K	2219K	21319K	22219K	1.40
H320	100	90	71	130	20	1320K	2220K	21320K	22220K	1.60
H321	105	95	74	140	20	__	__	__	__	1.85
H322	110	100	77	145	21	1322K	2222K	21322K	2222K	2.05
