Light type flange slewing bearing without gear 230 Series
Light type slewing bearing consists of two rings (one inner ring and one outer ring.) It has compact structure and light weight. As its balls are four point contacted with the raceway, the slewing bearing can take axial load, radial road, and tilting moment at the same time.

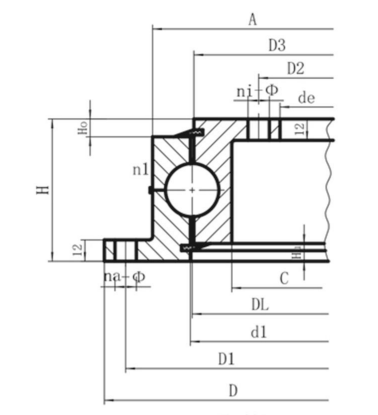

| Model | Wght | Dimensions | Mounting Dimensions | Structural Dimension | Clearance Axial | Clearance Radial | ||||||||||||||
| DL | kg | D | de | H | DI | D2 | na | φ/M | ni | φ/M | t | n 1 | D3 | d1 | A | C | Hu | Ho | ||
| 230.20.0414 | 23.0 | 518 | 304 | 56 | 490 | 332 | 16 | 18 | 24 | 18 | 20 | 4 | 412.5 | 415.5 | 453 | 375 | 10.5 | 10.5 | ≤0.5 | ≤0.5 |
| 230.20.0544 | 30.4 | 648 | 434 | 56 | 620 | 462 | 20 | 18 | 28 | 18 | 20 | 4 | 542.5 | 545.5 | 583 | 505 | 10.5 | 10.5 | ≤0.5 | ≤0.5 |
| 230.20.0644 | 35.8 | 748 | 534 | 56 | 720 | 562 | 24 | 18 | 32 | 18 | 20 | 4 | 642.5 | 6455 | 683 | 605 | 10.5 | 10.5 | ≤0.5 | ≤0.5 |
| 230.20.0744 | 42.2 | 848 | 634 | 56 | 820 | 662 | 24 | 18 | 32 | 18 | 20 | 4 | 742.5 | 745.5 | 783 | 705 | 10.5 | 10.5 | ≤0.5 | ≤0.5 |
| 230.20.0844 | 47.1 | 948 | 734 | 56 | 920 | 762 | 28 | 18 | 36 | 18 | 20 | 4 | 842.5 | 845.5 | 883 | 805 | 10.5 | 10.5 | ≤0.5 | ≤0.5 |
| 230.20.0944 | 52.3 | 1048 | 834 | 56 | 1020 | 862 | 32 | 18 | 40 | 18 | 20 | 4 | 942.5 | 945.5 | 983 | 905 | 10.5 | 10.5 | ≤0.5 | ≤0.5 |
| 230.20.1094 | 61.1 | 1198 | 984 | 56 | 1170 | 1012 | 32 | 18 | 40 | 18 | 20 | 4 | 1092.5 | 1095.5 | 1133 | 1055 | 10.5 | 10.5 | ≤0.5 | ≤0.5 |
Light Type Slewing Bearing – The Perfect Solution for Your Light Load Applications
If you are looking for a reliable and efficient solution for your light load applications, then our Light Type Slewing Bearing is the perfect choice for you. With its compact design and high load capacity, this product is ideal for a wide range of applications, including cranes, excavators, and other construction machinery.
Our Light Type Slewing Bearing is made from high-quality materials and is designed to withstand the toughest conditions. It is easy to install and requires minimal maintenance, making it a cost-effective solution for your business.
So why wait? Contact us today to learn more about our Light Type Slewing Bearing and how it can help you improve your operations and increase your productivity.
