Lock washer MB 05 MB 06 MB 07
Lock washer features:
1. Make the main machine parts manufacturing and installation simple.
2. Long service life, high strength, relying on friction transmission, no keyway weakening of the connecting parts, no relative movement, no wear in the work.
3. It protects the device during use.
4. Easy connection and disassembly, with good interchangeability.
|

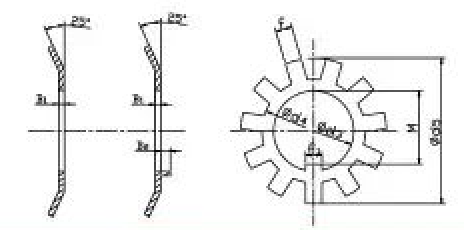

Designations |
Boundary Dimensions |
Number of external claws |
|||||||||
|
MB型 |
MBA型 |
d3 |
d4 |
d5 |
f1 |
M |
f |
B1 |
B2 |
N min |
|
|
MB 05 |
MBA 05 |
25 |
32 |
42 |
5 |
23 |
5 |
1.25 |
4 |
13 |
|
|
MB 06 |
MBA 06 |
30 |
38 |
49 |
5 |
27.5 |
5 |
1.25 |
4 |
13 |
|
|
MB 07 |
MBA 07 |
35 |
44 |
57 |
6 |
32.5 |
5 |
1.25 |
4 |
13 |
|
|
MB 08 |
MBA 08 |
40 |
50 |
62 |
6 |
37.5 |
6 |
1.25 |
5 |
13 |
|
|
MB 09 |
MBA 09 |
45 |
56 |
69 |
6 |
42.5 |
6 |
1.25 |
5 |
13 |
|
|
MB 10 |
MBA 10 |
50 |
61 |
74 |
6 |
47.5 |
6 |
1.25 |
5 |
13 |
|
|
MB 11 |
MBA 11 |
55 |
67 |
B1 |
8 |
52.5 |
7 |
1.5 |
5 |
17 |
|
|
MB 12 |
MBA 12 |
60 |
73 |
86 |
8 |
57.5 |
7 |
1.5 |
6 |
17 |
|
|
MB 13 |
MBA 13 |
65 |
79 |
92 |
8 |
62.5 |
7 |
1.5 |
6 |
17 |
|
|
MB 14 |
MBA 14 |
70 |
85 |
98 |
8 |
66 5 |
8 |
1.5 |
6 |
17 |
|
|
MB 15 |
MBA 15 |
75 |
90 |
104 |
8 |
71.5 |
8 |
1.5 |
6 |
17 |
|
|
MB 16 |
MBA 16 |
80 |
95 |
112 |
10 |
76.5 |
8 |
1.8 |
6 |
17 |
|
|
MB 17 |
MBA 17 |
85 |
102 |
119 |
10 |
81.5 |
8 |
1.8 |
6 |
17 |
|
|
MB 18 |
MBA 18 |
90 |
108 |
126 |
10 |
86.5 |
10 |
1.8 |
8 |
17 |
|
|
MB 19 |
MBA 19 |
95 |
113 |
133 |
10 |
91.5 |
10 |
1.8 |
8 |
17 |
|
|
MB 20 |
MBA 20 |
100 |
120 |
142 |
12 |
96.5 |
10 |
1.8 |
8 |
17 |
|
|
MB 21 |
MBA 21 |
105 |
126 |
145 |
12 |
100.5 |
12 |
1.8 |
10 |
17 |
|
|
MB 22 |
MBA 22 |
110 |
133 |
154 |
12 |
105.5 |
12 |
1.8 |
10 |
17 |
|
