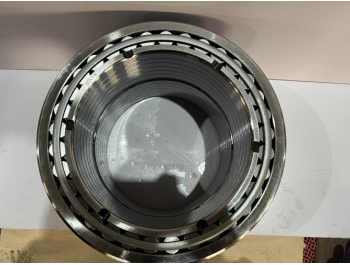

The 4 row tapered roller bearing adopts two double-raceway inner rings, one double-raceway outer ring and two single-raceway outer rings. There is a spacer ring between the inner ring and the outer ring to adjust the bearing clearance. This type of bearing can withstand higher loads. Large radial load and certain axial load, low limit speed.
It is usually used for steel processing machinery, cold rolling mill.
What material are tapered roller bearing?
Material | Steel | Characteristic & Application |
High carbon chromiumBearing steel | GCr15SiMn | Large bearings without impact loads on rolling mills |
GCr18Mo | Applied to rolling mill bearing certain impact load and high temperature bearing. | |
Carburized bearing steel | G20CrMo | Medium and small bearings subjected to impact loads. |
G20CrNiMo | ||
G20CrNi2Mo | Medium and large bearings with high impact loads. | |
G20CrNi3Mo | ||
G20Cr2Ni24 | Extra large bearings for impact loads.。 |
Rolling mill rolls bearing model choose.
Bearing model |
Dimensions (mm) |
Rated load(Kg) |
Weight(Kg) |
Use part |
|
382040 | d/200D/310B/275T/275 |
Cr/1350 |
Cor/4200 |
75 | Work roll |
380652/HC | d/260D/400B/255T/255 |
Cr/2050 |
Cor/4800 |
117 | Middle roll |
381172/HC | d/360D/600B/420T/420 |
Cr/3950 |
Cor/13500 |
423 | Work roll |
381176HCC9 | d/380D/620B/420T/420 |
Cr/5550 |
Cor/12600 |
485 | Work roll |
381080/HC | d/400D/600B/356T/356 |
Cr/4950 |
Cor/12400 |
345 | Support roll |
381184 | d/420D/700B/480T/480 |
Cr/10500 |
Cor/11900 |
755 | Work roll & Support roll |
3819/560/HC | d/560D/750B/368T/368 |
Cr/7850 |
Cor/15800 |
447 | Work roll |
3806/600HC | d/600D/800B/365T/365 |
Cr/4000 |
Cor/18100 |
489 | Work roll & Support roll |
3806/710HCY | d/710D/900B/410T/410 |
Cr/7850 |
Cor/27400 |
650 | Support roll |
3811/750 | d/750D/1220B/840T/840 |
Cr/17700 |
Cor/68500 |
3985 | Support roll |
CF bearings advantage:
1、Specialize in bearing fields for more than 20 years.
2、Factory direct sales.
3、Serve for premium customers.
4、More controllable quality with 20% ~30% cost.
