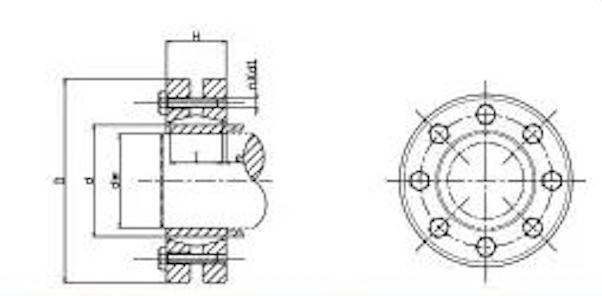

Z7B type locking assembles
The advantages of Z7B type: high centering accuracy; Easy to install/adjust/disassemble; High strength, stable and reliable connection; It can protect the equipment from damage during overload, especially for transferring heavy loads. Widely used in heavy machinery, light industrial machinery, food machinery, packaging machinery, textile machinery, printing machinery, CNC machine tools, automation equipment and other fields.
|
Basic size |
Rated load |
Weight |
|||
|
d |
D |
dw |
Axial force Ft |
Torque Mt |
w.t |
|
Basic dimensions(mm） |
kN |
kN-m |
kg |
||
|
200 |
350
|
150 |
1040 |
78 |
41 |
|
155 |
1084 |
84 |
|||
|
160 |
1125 |
90 |
|||
|
160 |
1250 |
100 |
|||
|
220 |
370 |
165 |
1309 |
108 |
54
|
|
170 |
1365 |
116 |
|||
|
170 |
1412 |
120 |
|||
|
240 |
405 |
180 |
1533 |
138 |
67
|
|
190 |
1642 |
156 |
|||
|
190 |
1726 |
164 |
|||
|
260 |
430 |
200 |
1840 |
184 |
82
|
|
210 |
1943 |
204 |
|||
|
210 |
2062 |
217 |
|||
|
280 |
460 |
220 |
2227 |
245 |
102
|
|
230 |
2374 |
273 |
|||
|
230 |
2278 |
262 |
|||
|
300 |
485 |
240 |
2442 |
293 |
118
|
|
245 |
2514 |
308 |
|||
|
320 |
520 |
240 |
2550 |
306 |
131
|
|
250 |
2720 |
340 |
|||
|
260 |
2877 |
374 |
|||
|
250 |
3152 |
394 |
|||
|
340 |
570 |
260 |
3308 |
430 |
186 |
|
270 |
3452 |
466 |
|||
|
270 |
3393 |
458 |
|||
|
350 |
590 |
280 |
3572 |
500 |
204 |
|
285 |
3656 |
521 |
|||
|
280 |
3622 |
507 |
|||
|
360 |
590 |
290 |
3793 |
550 |
204 |
|
295 |
3878 |
572 |
|||
|
290 |
4069 |
590 |
|||
|
380 |
645 |
300 |
4267 |
640 |
239 |
|
310 |
4452 |
690 |
|||
|
300 |
4400 |
660 |
|||
|
390 |
660 |
310 |
4580 |
710 |
260 |
|
320 |
4750 |
760 |
|||
