Z8 type locking assembles

Short Description:

Through the combination of the inner and outer sleeve and the expansion element, the expansion coupling sleeve realizes the axial and radial stable fixation, enhances the bearing capacity and stability of the connector, and is suitable for mechanical manufacturing and engineering construction and other fields, providing convenient installation and reliable connection solutions.


Product Detail

Product Tags

Expansion sleeve (also known as expansion coupling sleeve, keyless bearing, etc.) is a keyless connection device, its principle and use is through the role of high-strength tension bolts, between the inner ring and the shaft, between the outer ring and the hub to produce a huge holding force, in order to achieve the keyless connection between the machine and the shaft. When the load is borne, the torque, axial force or composite load of the two is transmitted by the combined pressure of the expansion sleeve and the mechanical part and the shaft and the accompanying friction force.

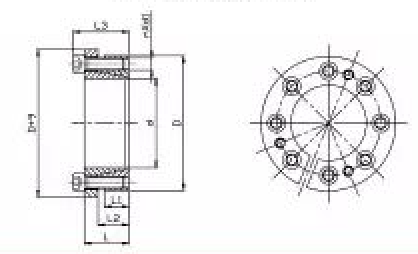

截屏2024-08-02 15.59.14



Basic size

Rated load

Expansion sleeve and axle junction

Expansion sleeve and wheel hub

Weight

d

D

L

Axial force Ft

Torque Mt

w.t

Basic dimensions(mm

kN

kN-m

pf N/mm

pf N/mm

kg

200

260

44

528

52.8

160

125

9.90

220

285

50

587

64.5

145

110

13.40

240

305

50

734

88

165

130

14.30

260

325

50

880

114

180

145

15.50

280

365

60

948

132

150

120

22.90

300

375

60

1059

159

160

125

24.40

320

405

74

1374

220

150

120

36.10

340

425

74

1603

272.5

175

135

38.40

360

455

86

1710

308

140

110

46.20

380

475

66

1996

379

155

125

55.00

400

495

86

1995

399

150

120

61.00
